Marítima del Norte








Sierra Nieves

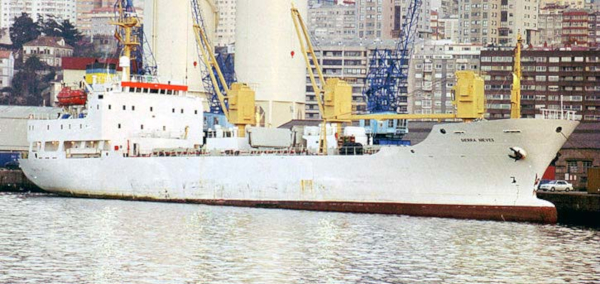

Sierra Nieves by Fran García

Shipyard / Year Hayashikane-Japón / 1986
Name Jarikaba
Dead weight 4,277 MT
Gross register 4,238 GRT
Length 108.0 mtr
Breadth 16.0 mtr
Depth 9.8 mtr
Maximum draft 6.2 mtr
Propulsion Burmeister & Wain 7L35MCE
Power 4,760 H.P.
Alternators 4 x 400 kW - 450 VAC - 60 Hz
Speed 16 knots
Bought 2001 to
Owner Fll Fyffes PLC
Name Jarikaba
Sold 2008 to
Owner Seatrade Groningen BV
Name Jarikaba
Name / Year Hua Jian 107 / 2011
Scrapped Chattogram (Bangladesh) - 2021



Sierra Nafria

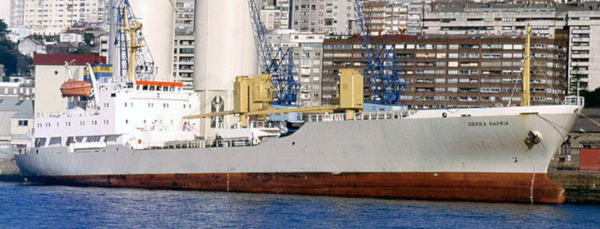

Sierra Nafria by Fran García

Shipyard / Year Hayashikane-Japón / 1990
Name Coppename
Dead weight 4,433 MT
Gross register 4,599 GRT
Length 108.8 mtr
Breadth 16.4 mtr
Depth 9.8 mtr
Maximum draft 6.5 mtr
Propulsion Burmeister & Wain 7L35MC
Power 5,240 H.P.
Auxiliary 3 x Yanmar M200L-SN
Alternators 3 x 440 kW - 450 VAC - 60 Hz
Speed 16 knots
Bought 2001 to
Owner Fll Fyffes PLC
Name Coppename
Sold 2008 to
Owner Coppename Shipping Company BV
Name Coppename
Status In February 2022 yet active



Sierra Nava
Sierra Nava by Fran García

Shipyard / Year Hayashikane-Japón / 1991
Name Cottica
Dead weight 4,433 MT
Gross register 4,660 GRT
Length 108.8 mtr
Breadth 16.4 mtr
Depth 9.8 mtr
Maximum draft 6.5 mtr
Propulsion Burmeister & Wain 7L35M
Power 5,240 H.P.
Alternators 3 x 440 kW - 450 VAC - 60 Hz
Speed 16 knots
Bought 2001 to
Owner Fll Fyffes PLC
Name Cottica
Wrecked 28/01/2007 - Algeciras
Scrapped Aliaga (Turkey) - 2007



Sierra Lara
Sierra Lara by Emilio Mesa

Shipyard / Year C.N. Freire - Vigo / 1996
Dead weight 5,970 MT
Gross register 5,110 GRT
Length 117.3 mtr
Breadth 17.5 mtr
Depth 9.8 mtr
Maximum draft 6.7 mtr
Propulsion Manises - MAN B&W 7S35MC
Power 6,660 H.P.
Auxiliary 1 x Catepillar - 3412C
Alternator 1 x 350 kW - 380 VAC - 50 Hz
Auxiliary 2 x Catepillar - 3512TAC
Alternators 2 x 650 kW - 380 VAC - 50 Hz
Shaft alternator 1 x 650 kW - 380 VAC - 50 Hz
Speed 16,5 knots
Sold 2008 to
Owner Sierra Lara Shipping Co.
Name Sierra Lara
Status In February 2022 yet active

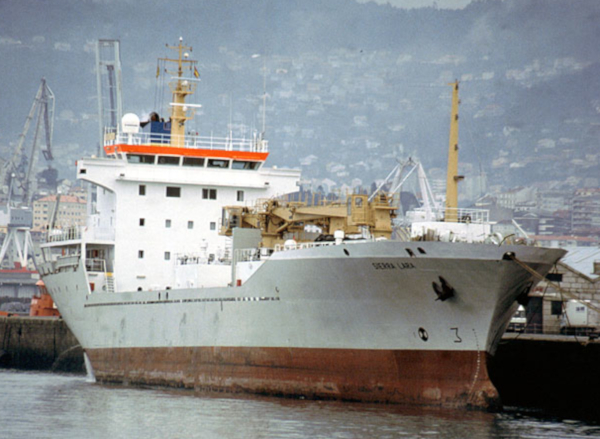

Sierra Lara by Fran García



Sierra Loba
Sierra Loba by A. Mantilla

Shipyard / Year C.N. Freire - Vigo / 1997
Dead weight 5,970 MT
Gross register 5,100 GRT
Length 117.3 mtr
Breadth 17.5 mtr
Depth 9.8 mtr
Maximum draft 6.7 mtr
Propulsion Manises - MAN B&W 7S35MC
Power 6,660 H.P.
Auxiliary 1 x Catepillar - 3412C
Alternator 1 x 350 kW - 380 VAC - 50 Hz
Auxiliary 2 x Catepillar - 3512TAC
Alternators 2 x 650 kW - 380 VAC - 50 Hz
Shaft alternator 1 x 650 kW - 380 VAC - 50 Hz
Speed 16,5 knots
Sold 2008 to
Owner Sierra Loba Shipping Co.
Name Sierra Loba
Name / Year Affinis / 2019
Status In February 2022 yet active

Sierra Loba by F. García



Sierra Leyre

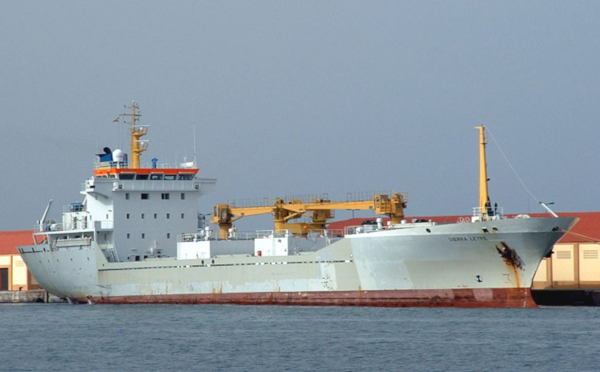

Sierra Leyre by Emilio Mesa

Shipyard / Year C.N. Freire - Vigo / 1997
Dead weight 5,970 MT
Gross register 5,100 GRT
Length 117.3 mtr
Breadth 17.5 mtr
Depth 9.8 mtr
Maximum draft 6.7 mtr
Propulsion Manises - MAN B&W 7S35MC
Power 6,660 H.P.
Auxiliary 1 x Catepillar - 3412C
Alternator 1 x 350 kW - 380 VAC - 50 Hz
Auxiliary 2 x Catepillar - 3512TAC
Alternators 2 x 650 kW - 380 VAC - 50 Hz
Shaft alternator 1 x 650 kW - 380 VAC - 50 Hz
Speed 16,5 knots
Sold 2008 to
Owner Sierra Leyre Shipping Co.
Name Sierra Leyre
Status In February 2022 yet active



Sierra Laurel
Sierra Laurel por A. Mantilla

Shipyard / Year C.N. Freire - Vigo / 1998
Dead weight 5,937 MT
Gross register 5,100 GRT
Length 117.3 mtr
Breadth 17.5 mtr
Depth 9.8 mtr
Maximum draft 6.7 mtr
Maximum draft 6.7 mtr
Propulsion Manises - MAN B&W 7S35MC
Power 6,660 H.P.
Auxiliary 1 x Catepillar - 3412C
Alternator 1 x 350 kW - 380 VAC - 50 Hz
Auxiliary 2 x Catepillar - 3512TAC
Alternators 2 x 650 kW - 380 VAC - 50 Hz
Shaft alternator 1 x 650 kW - 380 VAC - 50 Hz
Speed 16,5 knots
Sold 2008 to
Owner Sierra Laurel Shipping Co.
Name Sierra Laurel
Status In February 2022 yet active

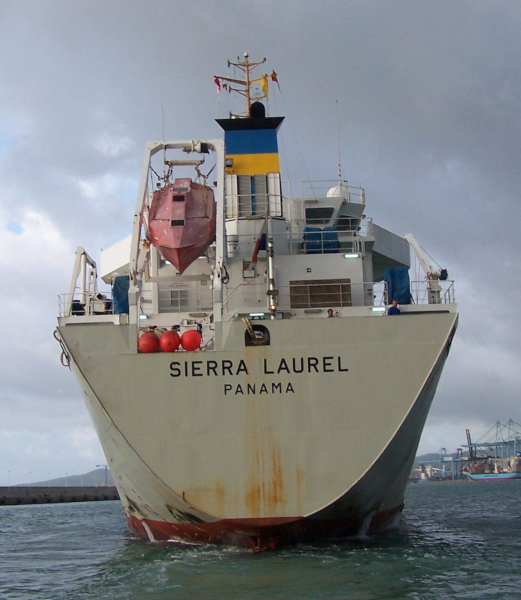

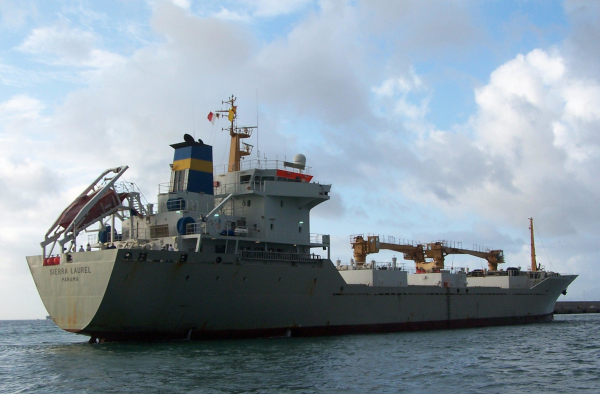

Sierra Laurel por A. Mantilla
The three photos were shot at Algeciras in 2005
Sierra Laurel por A. Mantilla



Deneb

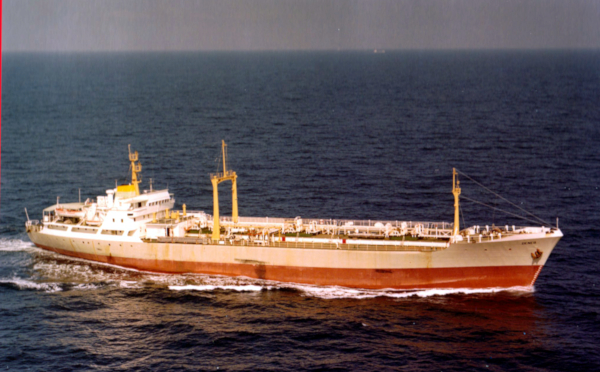

Deneb - Collection M. Soler

Shipyard / Year S.E.C.N. - Sestao / 1968
Dead weight 3,516 MT
Gross register 3,377 GRT
Length 104.0 mtr
Breadth 14.8 mtr
Depth 9.3 mtr
Maximum draft 6.3 mtr
Propulsion Naval - B&W 6-50VT2BF–110
Power 4,600 H.P.
Alternators 2 x 212 kW - 380 VAC - 50 Hz
Speed 13,5 knots
Sold 1980 to
Owner Auxtramarsa
Name Deneb
Name / Year River Choci / 1990
Name / Year Java Princess / 1994
Scrapped Aliaga (Turkey) - 1997

Deneb - Collection M. Soler



Sant Jordi

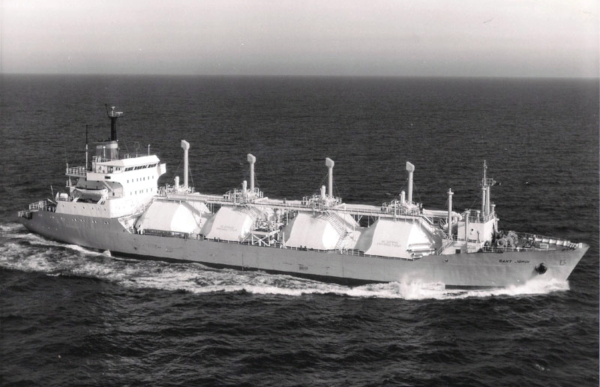

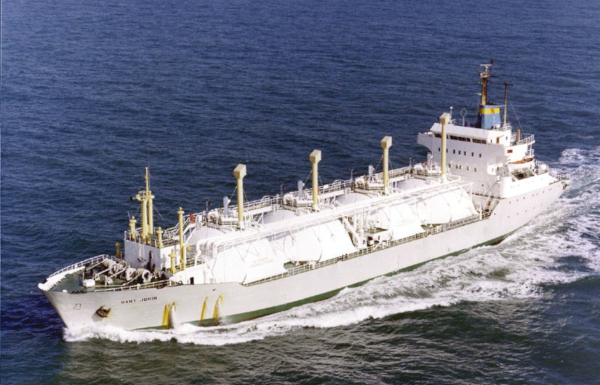

Sant Jordi - Collection Manuel Rodriguez Aguilar

Sant Jordi - Collection Manuel Rodriguez Aguilar

Shipyard / Year Tomás Ruiz de Velasco / 1977
Dead weight 4,100 MT
Gross register 5,453 GRT
Length 109.9 mtr
Breadth 18.6 mtr
Depth 9.9 mtr
Maximum draft 5.8 mtr
Propulsion Naval - Burmeister & Wain 7-50VT2BF-110
Power 5,400 H.P.
Speed 16 knots
Sold 1988 to
Owner Aurora Corporation - Panamá
Name Gas Tarraco
Name / Year Red Star / 1989
Sunk 06/01/1994 -- 36º10'N-08º00'W

Sant Jordi by F. Estrañi

Sant Jordi - Collection J. Careaga

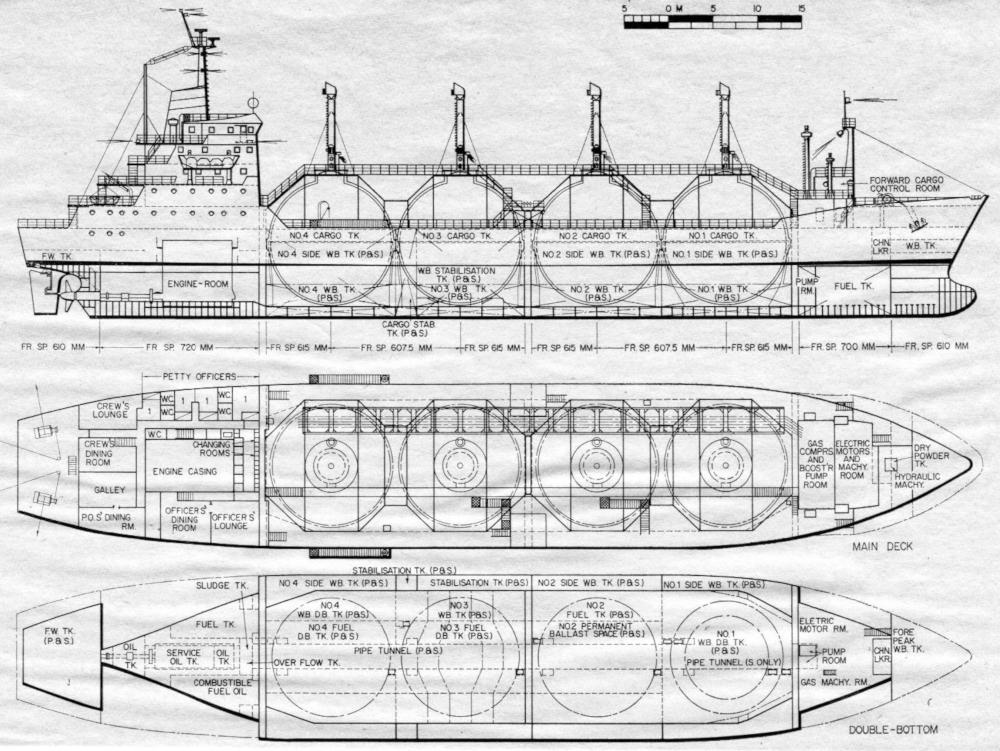

Drawings of Sant Jordi



Laieta

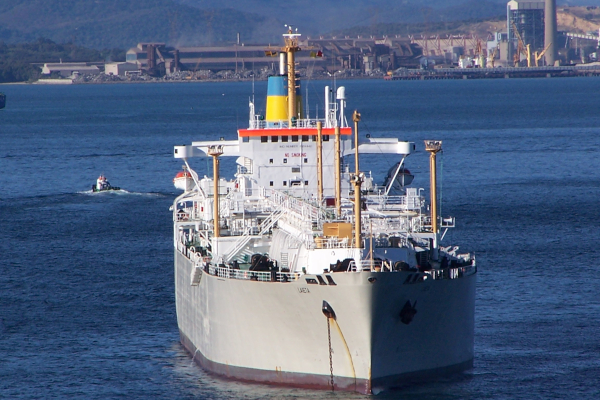

Laieta by A. Mantilla

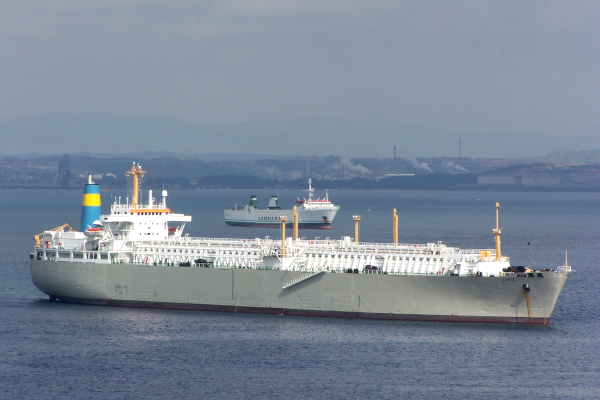

Laieta by A. Mantilla

Shipyard / Year ASTANO - Ferrol / 1970
Dead weight 25,293 MT
Gross register 30,394 GRT
Net register 19,664 NRT
Length 207.9 mtr
Breadth 29.3 mtr
Depth 18.5 mtr
Maximum draft 9.2 mtr
Propulsion Steam turbines Laval
Power 15.000 H.P.
Turboalternators 2 x 1,250 kW - 450 VAC - 60 Hz
Diesel alternator 1 x 920 kW - 450 VAC - 60 Hz
Speed 18 knots
Scrapped Chittagong (Bangladesh) - 2008

Laieta by A. Mantilla



With the contribution of Javier Careaga Basarrate, who compiled part of data
