Compañía Trasmediterránea

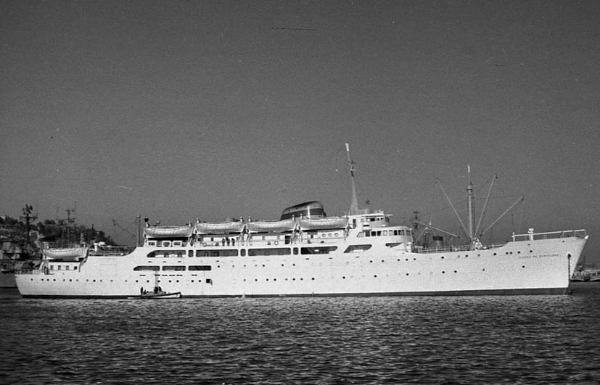

Ciudad de Barcelona Ex-Playa de Formentor

Shipyard / Year	Unión Naval de Levante / 1955
Dead weight	1,555	MT
Gross register	5,195	GRT
Passengers	708 = 308(1st) + 122(2nd) + 246(3rd)
Length	106.4	mtr
Breadth	15.5	mtr
Depth	8.5	mtr
Propulsion	2 x MTM - Burmeister & Wain 750-VF-90
Power	5,300	C.V.
Speed	17.5	knots
Auxiliary engines	3 x 180 kW - 220 VDC
Bought	1955	to
Owner	Empresa Nacional Elcano
Name	Playa de Formentor
Scrapped	Vilanova i la Geltrú - 1982

Drawing - Cabins arrangement

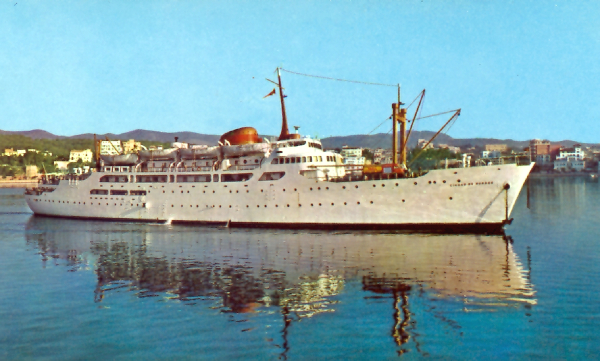

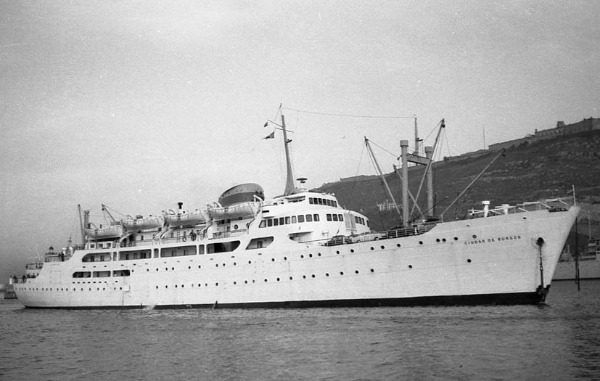

Ciudad de Burgos Ex-Playa de Palmanova

Shipyard / Year	Unión Naval de Levante / 1956
Dead weight	1,519	MT
Gross register	5,245	GRT
Passengers	698 = 390(1st) + 308(2nd)
Length	106.4	mtr
Breadth	15.5	mtr
Depth	8.5	mtr
Propulsion	2 x MTM - Burmeister & Wain 750-VF-90
Power	5,300	H.P.
Speed	17.5	knots
Auxiliary engines	3 x 180 kW - 220 VDC
Bought	1956	to
Owner	Empresa Nacional Elcano
Name	Playa de Palmanova
Scrapped	Vilanova i la Geltrú - 1982

      Interior views

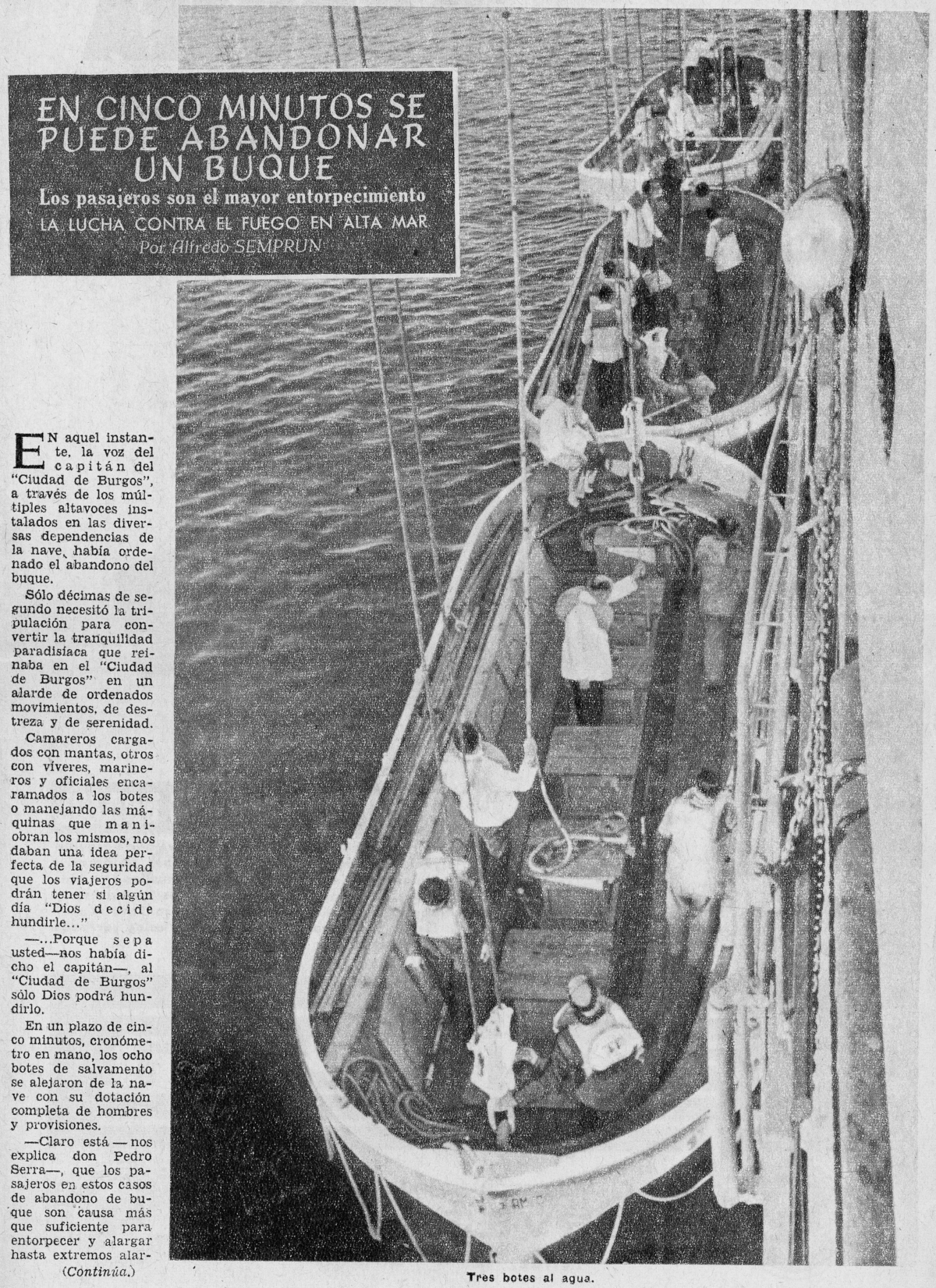

Lifeboats drill

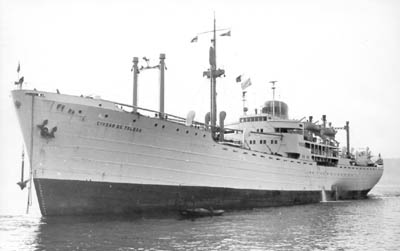

Ciudad de Toledo         She was part of the Monasterios serie together with plus three more vessels for Naviera Aznar, plus two more vessels for Trasatlántica. She was the last vessel in the serie.

Building year:	1956		GRT:	9,835
Shipyard:	Euskalduna		NRT:	6,715
Passengers:	54		DW:	7,390
Lenght:	148.5 mtr		Dead weight:	8,625
Breadth:	19.0 mtr		Propulsion:	Diesel engine
Depth:	12.1 mtr		Power:	7,300 H.P.
Scrapped on 1979

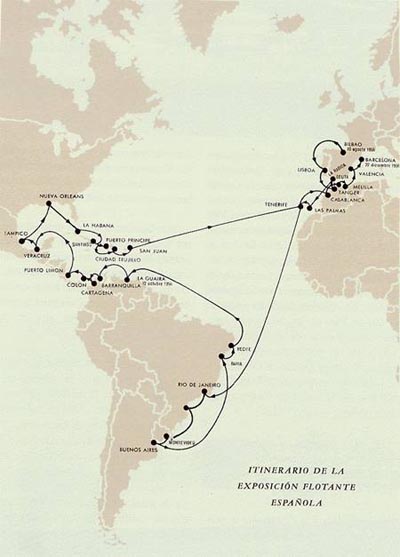

    Press clips about the voyage

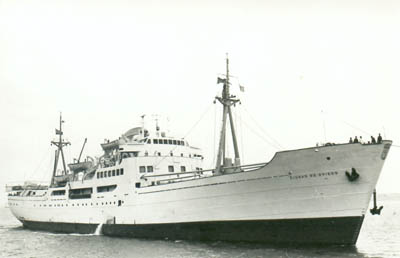

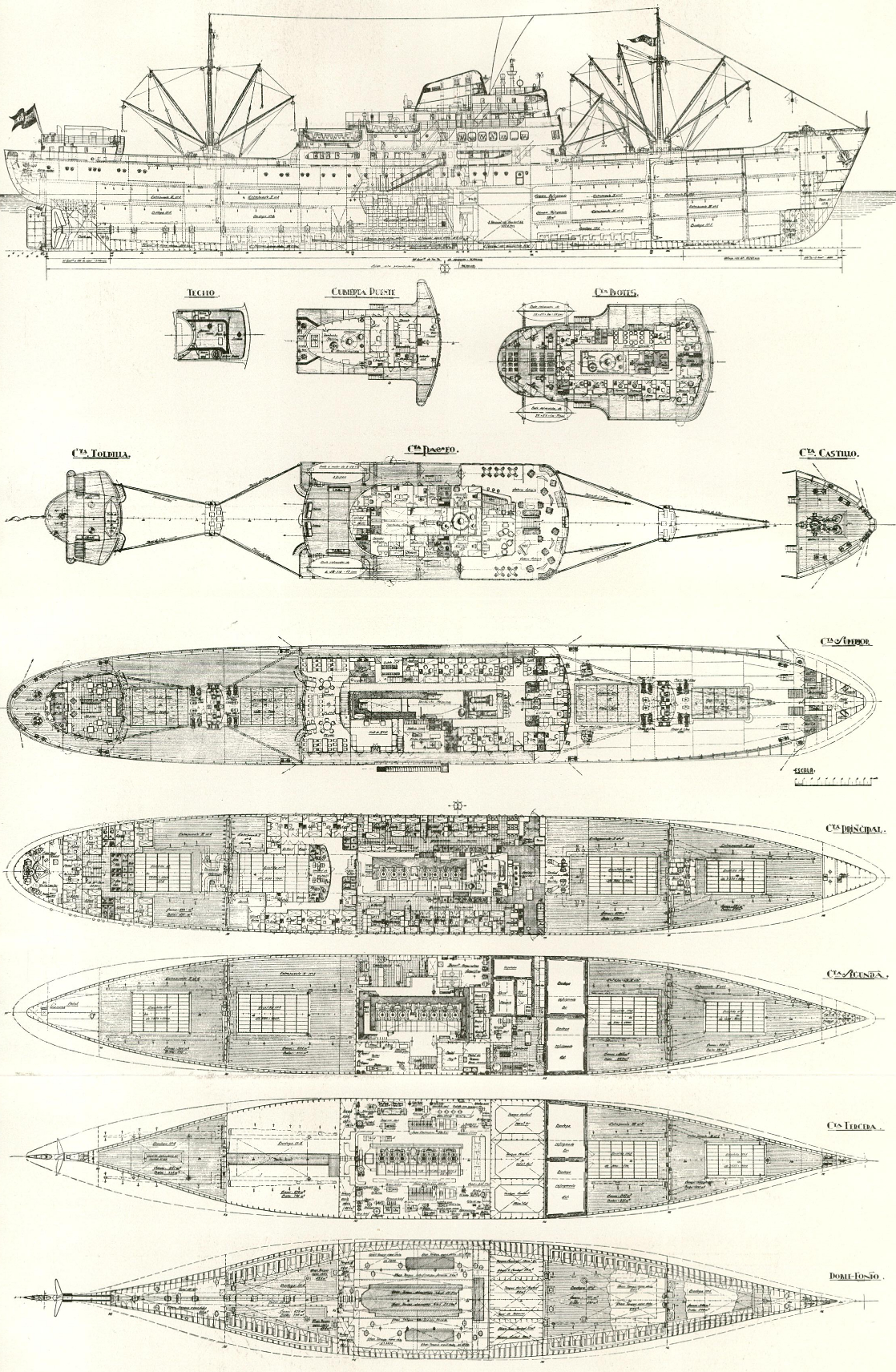

Ciudad de Oviedo We can take a look to a nice postcard of this vessel.

Shipyard / Year	Unión Naval de Levante / 1957
Dead weight	3,148	MT
Gross register	5,251	GRT
Passengers	113
Length	115.6	mtr
Breadth	15.6	mtr
Depth	11.1	mtr
Propulsion	B&W 774-VTF-140
Power	6,125	H.P.
Scrapped	Bilbao - 1980

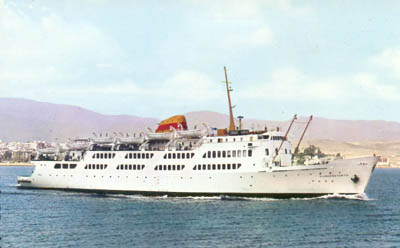

Ciudad de Tarifa

Shipyard / Year	Unión Naval de Levante / 1961
Dead weight	1,070	MT
Gross register	5,001	MT
Passengers	714
Length	103.2	mtr
Breadth	16.1	mtr
Depth	7.3	mtr
Max. draft	5.19	mtr
Propulsion	2 x B&W 750-VF-90
Power	5,300	H.P.
Speed	17.3	knots
Sold	1984	to
Owner	Agapitos Brothers
Name	Apollon
Name / Year	Corfu Island / 1985
Desguazado	Perama (Greece) - 1986

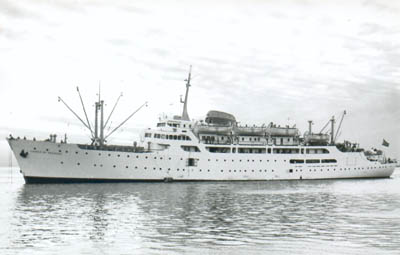

Ciudad de Granada

Shipyard / Year	Unión Naval de Levante / 1961
Dead weight	1,182	MT
Gross register	4,944	MT
Passengers	462 bunk + 272 deck
Length	106.4	mtr
Breadth	15.5	mtr
Depth	8.5	mtr
Max. draft	5.0	mtr
Propulsion	2 x B&W 750-VF-90
Power	5,300	H.P.
Speed	16.5	knots
Sold	1983	to
Armador	Shotley Mercantile
Scrapped	1984

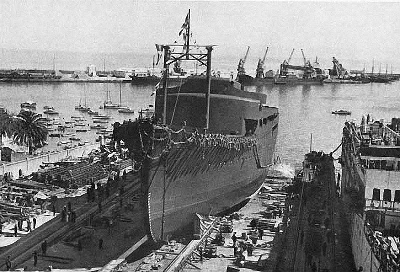

Her launching, on 12/March/1960.

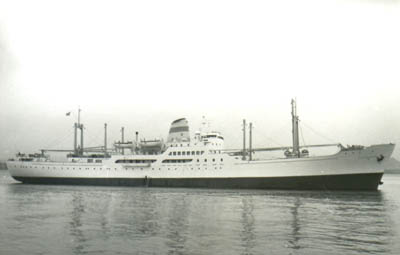

Villa de Bilbao

Shipyard / Year	Unión Naval de Levante / 1962
Dead weight	7,080	MT
Passengers	144
Length	133.2	mtr
Breadth	17.9	mtr
Depth	11.2	mtr
Propulsion	Diesel engine
Power	7,500	H.P.
Sold	1980

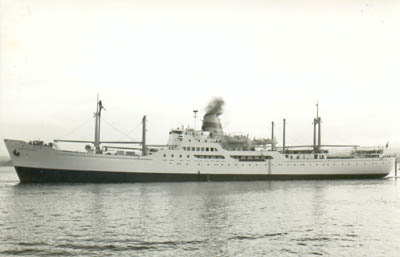

Ciudad de Pamplona She was sister ship of the previous. They had Valencia as home port, with the numbers 544 and 548 respectively. Both were sold on 1980 to a Singaporean company.

Shipyard / Year	Unión Naval de Levante / 1964
Dead weight	7,083	MT
Passengers	136
Length	133.2	mtr
Breadth	17.9	mtr
Depth	11.2	mtr
Propulsion	MTM – B&W 674VTBF160
Power	7,500	H.P.
Speed	17	knots
Sold	1980

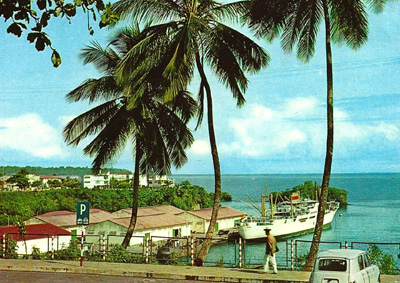

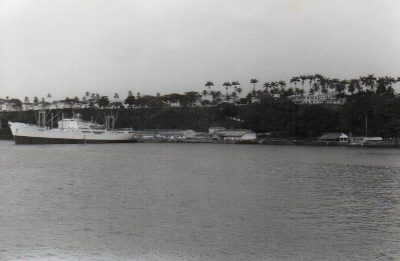

<       This nice photo shows her berthed at Malabo (Equatorial Guinea) when it was yet Spanish Guinea and the city was called Santa Isabel. When it was already Malabo the vessel was berthed by the aft outside the photo right border as floating hotel, after Teodoro Obiang started his presidency. Another view of the ship shot from the Alsixmar, that was berthed at the pier.

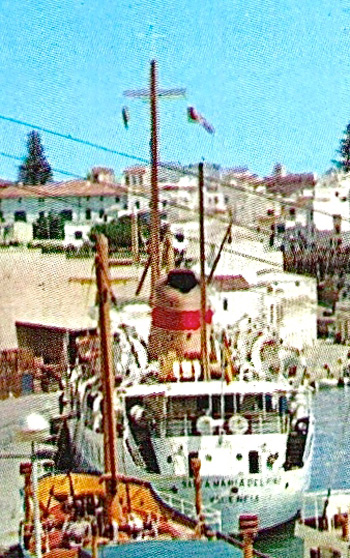

Santa Maria del Pino       Between 1963 and 1967 were received five sister vessels; they were the Pelícano class. All them were built by Unión Naval de Levante. The two first were Santa Maria del Pino and Santa Maria de la Candelaria, and after two years were followed by Santa Maria de las Nieves, Santa Maria de la Caridad and Santa Maria de la Paz.
      Although basically sisters vessels there were some differences between the two first and the three last, what can be seen also from outside.

Shipyard / Year	Unión Naval de Levante / 1963
Dead weight	454	MT
Gross register	1,216	MT
Passengers	333
Length	67.1	mtr
Breadth	11.1	mtr
Depth	5.2	mtr
Propulsion	2 x MTM T829CRN
Power	1,750	H.P.
Speed	15	knots
Scrapped	1980

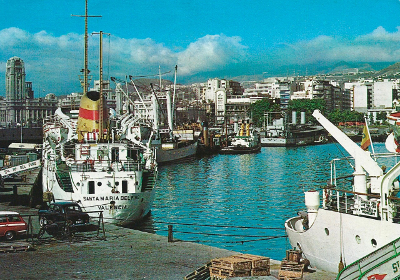

At Santa Cruz de Tenerife

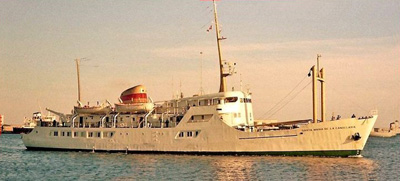

Santa Maria de la Candelaria

Shipyard / Year	Unión Naval de Levante / 1964
Dead weight	457	MT
Gross register	1,201	MT
Passengers	333
Length	67.1	mtr
Breadth	11.1	mtr
Depth	5.2	mtr
Propulsion	2 x MTM T829CRN
Power	1,750	H.P.
Speed	15	knots
Scrapped	1982

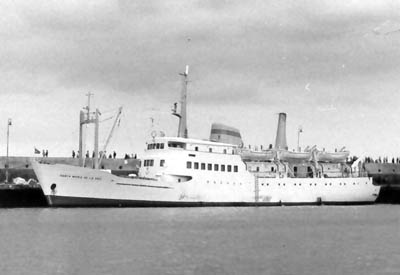

Santa Maria de la Paz

Shipyard / Year	Unión Naval de Levante / 1967
Dead weight	367	MT
Gross register	1,199	MT
Passengers	250
Length	66.9	mtr
Breadth	11.0	mtr
Depth	5.3	mtr
Propulsion	2 x MTM T829CRN
Power	2,000	H.P.
Speed	15	knots
Sold	1984
Scrapped	2012

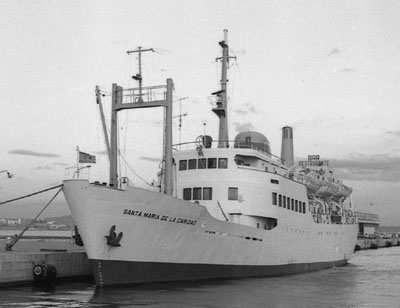

Santa Maria de la Caridad

Shipyard / Year	Unión Naval de Levante / 1967
Dead weight	367	MT
Gross register	1,199	MT
Passengers	250
Length	66.9	mtr
Breadth	11.0	mtr
Depth	5.3	mtr
Propulsion	2 x MTM T829CRN
Power	2,000	H.P.
Speed	15	knots
Sold	1984
Scrapped	2005

  Spanish version


With the contribution of Javier Careaga Basarrate, who supplied the engines data.




---
