Empresa Nacional Elcano







Villafranca

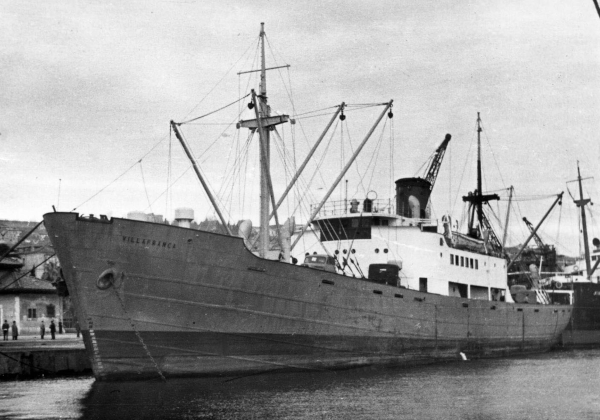

Villafranca by T. Diedrich

Shipyard / Year Echevarrieta y Larrinaga / 1948
Dead weight 2,892 MT
Gross register 2,544 GRT
Length 89.6 mtr
Breadth 13.2 mtr
Depth 7.6 mtr
Propulsion Reciprocating quadruple expansion
Maker Christiansen & Meyer
Power 1,800 H.P.
Boilers La Mont -- 16 kg/cm2 - 350ºC
Chartered 1957
to
Owner Hispano Cubana de Navegación
Name Villafranca
Redelivered 1959
Sold 1959
to
Owner Ybarra y Cía.
Name Cabo del Pinar
Scrapped San Carlos de la Rápita / 1970


Villanueva

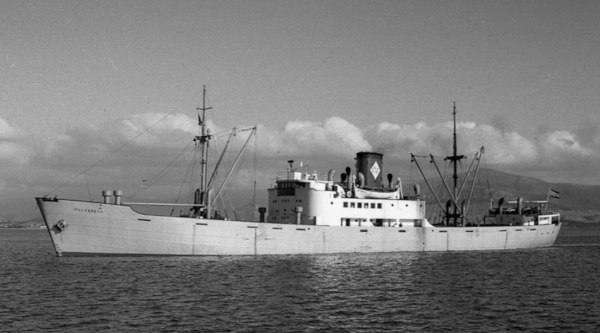

Villanueva by T. Diedrich

Shipyard / Year Echevarrieta y Larrinaga / 1949
Dead weight 2,892 MT
GRT 2,544
Length 89.6 mtr
Breadth 13.2 mtr
Depth 7.6 mtr
Propulsion Reciprocating quadruple expansion
Maker Christiansen & Meyer
Power 1,800 H.P.
Boilers LaMont -- 16 kg/cm2 - 350ºC
Chartered or Sold 1957
Owner Hispano Cubana de Navegación
Name Villanueva
Sold 1959
Owner Ybarra
Name Cabo Peñas
Scrapped Bilbao / 1970


Villagarcia

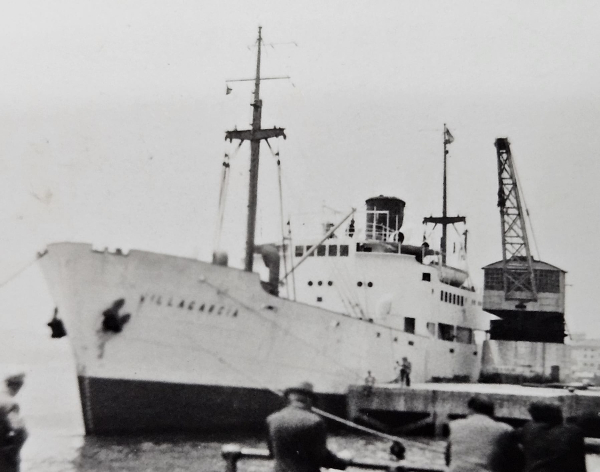

Villagarcia por F. Estrañi San Emeterio
      Este barco permaneció muy poco tiempo en la naviera, ya que conjuntamente con el Villaviciosa fue vendido en 1951 a la naviera portuguesa Companhia de Navegaçao Carregadores Açorianos, siendo renombrados Sete Cidades y Lagoa respectivamente. El Lagoa cambió en 1973 su nombre por el de Somar, permanceciendo bajo bandera portuguesa, y siendo finalmente desguazado ese mismo año en San Esteban de Pravia. El Sete Cidades conservó su nombre hasta ser desguazado en Lisboa en 1971.
Shipyard / Year S.E.C.N. - Sestao / 1950
Dead weight 2,885 MT
Gross register 2,504 GRT
Length 89.6 mtr
Breadth 13.2 mtr
Depth 7.6 mtr
Propulsion Reciprocating quadruple expansión
Maker Christiansen & Meyer
Power 1,800 H.P.
Boilers LaMont -- 16 kg/cm2 - 350ºC
Sold 1951 to
Owner Cia. de Nav. Carregadores Açorianos
Name Sete Cidadess
Scrapped Lisbon (Portugal) / 1971



Conde de Argelejo
Conde de Argelejo - Collection J. C. Gonzalez

Shipyard / Year Unión Naval de Levante / 1949
Dead weight 4,471 MT
Gross register 6,518 GRT
Displacement 9,230 MT
Length 122.5 mtr
Breadth 16.7 mtr
Depth 11.2 mtr
Maximum draft 7,3 mtr
Propulsion 2 x Burmeister & Wain 762-VF-115
Power 7,000 H.P.
Speed 18 knots
Sold 1952 to
Owner Compañía Trasatlántica
Name Virginia de Churruca
Sold 1973 to
Owner Compañía Trasmediterránea
Name Isla de Formentera
Scrapped Barcelona / 1978



Explorador Iradier
Explorador Iradier

Shipyard / Year Unión Naval de Levante / 1948
Dead weight 4,400 MT
Gross register 6,661 GRT
Displacement 9,230 MT
Length 122.2 mtr
Breadth 16,8 mtr
Depth 11.2 mtr
Maximum draft 7,3 mtr
Propulsion 2 x Burmeister & Wain 762-VF-115
Power 7,000 H.P.
Speed 18 knots
Sold 1952 to
Owner Compañía Trasatlántica
Name Satrustegui
Sold 1973 to
Owner Compañía Trasmediterránea
Name Isla de Cabrera
Scrapped Castellón / 1973

Explorador Iradier - Collection P. Blanco



Artico

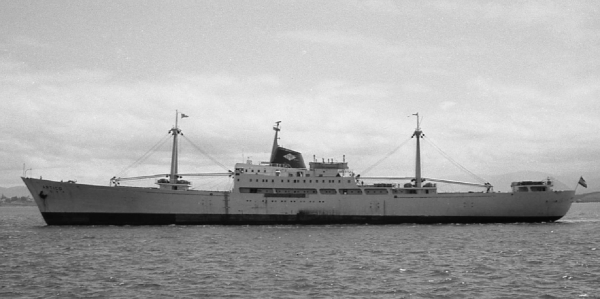

Artico by T. Diedrich

Shipyard / Year E.N. Elcano - Sevilla / 1962
Dead weight 5,500 MT
Gross register 6,420 GRT
Length 137.3 mtr
Breadth 17.3 mtr
Depth 11.3 mtr
Propulsion Sulzer 6RD76
Power 9,600 H.P.
Speed 18.5 knots
Bought 1965 to
Owner Tropicana Shipping
Name Tropicana
Sold 1973 to
Owner Jamil Lines
Name Al Mansour
Name / Year Arctic Mariner / 1978
Name / Year Telamon / 1982
Scrapped Eleusis (Greece) - 1982

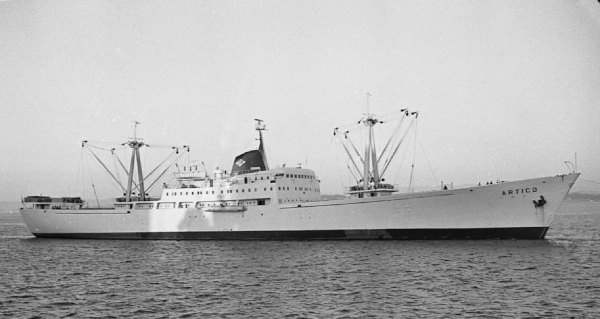

Artico by T. Diedrich

Artico by T. Diedrich



Almirante F. Moreno

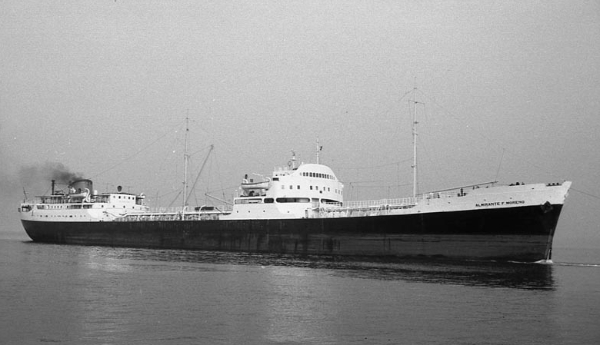

Almirante F. Moreno by T. Diedrich

Shipyard / Year E.N. Bazán - Ferrol / 1954
Dead weight 14,933 MT
Gross register 10,525 GRT
Length 163.7 mtr
Breadth 20.1 mtr
Depth 11.4 mtr
Propulsión 2 x Burmeister & Wain 862VTF115
Power 9,800 H.P.
Speed 17 knots
Scrapped Vilanova i la Geltrú - 1977

Almirante F. Moreno by T. Diedrich



Almirante M. Vierna

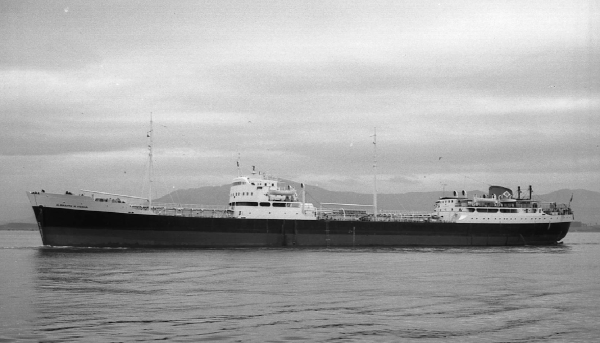

Almirante M. Vierna by T. Diedrich

Shipyard / Year E.N. Bazán - Ferrol / 1955
Dead weight 14,933 MT
Gross register 10,568 GRT
Length 163.7 mtr
Breadth 20.1 mtr
Depth 11.4 mtr
Propulsion 2 x Burmeister & Wain 862VTF115
Power 9,800 H.P.
Speed 17 knots
Scrapped Vilanova i la Geltrú - 1978

Almirante M. Vierna by T. Diedrich



Virgen de Africa
Virgen de Africa

Shipyard / Year Unión Naval de Levante / 1953
Dead weight 1,195 MT
Gross register 3,392 GRT
Passengers 900 = 22 (1st) - 16 (2nd) - 862
Length 103.6 mtr
Breadth 16.6 mtr
Depth 7.3 mtr
Propulsion 2 engines B&W 750-VF-90
Power 5,300 H.P.
Auxiliary engines 3 x B&W x 180 kW 230 V DC
Emergency engine 28 kW
Sold 1955 to
Owner Compañía Trasmediterránea
Name Virgen de Africa
Sold 1986 to
Owner Agrupaciones e Inversiones
Name Africa
Scrapped 1989



Victoria

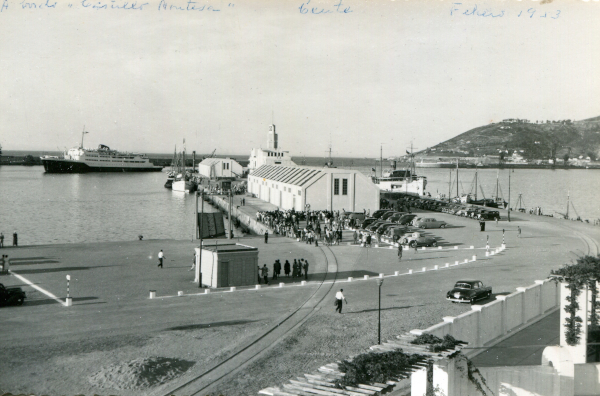

Victoria - Collection J. Agrasot
Llegada a Ceuta, entre 1952 y 1955. Por la derecha, atracado, estaba el Ciudad de Algeciras.
Shipyard / Year Unión Naval de Levante / 1952
Dead weight 1,185 MT
Gross register 3,310 GRT
Passengers 808 = 22 (1st) - 16 (2nd) - 770
Length 103.6 mtr
Breadth 16.0 mtr
Depth 7.3 mtr
Propulsion 2 engines B&W 750-VF-90
Power 5,300 H.P.
Auxiliary engines 3 x B&W x 180 kW 230 V DC
Emergency engine 28 kW
Bought 1955 to
Owner Compañía Trasmediterránea
Name Victoria
Scrapped 1982



Playa de Formentor
Playa de Formentor by T. Diedrich

Shipyard / Year Unión Naval de Levante / 1955
Dead weight 1,555 MT
Gross register 5,195 GRT
Passengers 708 = 308(1st) + 122(2nd) + 246(3rd)
Length 106.4 mtr
Breadth 15.5 mtr
Depth 8.5 mtr
Propulsion 2 x MTM - Burmeister & Wain 750-VF-90
Power 5,300 H.P.
Speed 17.5 knots
Auxiliary engines 3 x 180 kW - 220 VDC
Sold 1955 to
Owner Compañía Trasmediterránea
Name Ciudad de Barcelona
Scrapped Vilanova i la Geltrú - 1982



Playa de Palmanova
Ciudad de Burgos - Colección de T. Diedrich

Shipyard / Year Unión Naval de Levante / 1956
Dead weight 1,495 MT
Gross register 5,245 GRT
Passengers 698 = 390(1ª)+308(2ª)
Length 106.4 mtr
Breadth 15.5 mtr
Depth 8.5 mtr
Propulsion 2 x MTM - Burmeister & Wain 750-VF-90
Power 5,300 H.P.
Speed 17.5 knots
Auxiliary engines 3 x 180 kW - 220 VDC
Sold 1956 to
Owner Compañía Trasmediterránea
Name Ciudad de Burgos
Scrapped Vilanova i la Geltrú - 1981



Huesca
Huesca - Collection J.C. Cilveti

Shipyard / Year Hijos de J. Barreras / 1954
Dead weight 1,249 MT
Gross register 2,036 GRT
Passengers 244 = 38 (1st) - 32 (2nd) - 172
Length 79.1 mtr
Breadth 13.5 mtr
Depth 6.2 mtr
Until 1974
Propulsion Werkspoor-Lugt V.E.S. 604/90
Power 1,600 H.P.
Since 1974
Propulsion Deutz
Power 2,000 H.P.
Auxiliary engines 2 Werkspoor TMA-234 - 180 CV
Emergency engine 50 kW
Sold 1956 to
Owner Compañía Trasmediterránea
Name Ciudad de Huesca
Scrapped Gandía / 1979


Teruel
Teruel - El Puerto de Sevilla

Shipyard / Year Hijos de J. Barreras / 1955
Dead weight 1,249 MT
Gross register 2,036 GRT
Passengers 244 = 38 (1st) - 32 (2nd) - 172
Length 79.1 mtr
Breadth 13.5 mtr
Depth 6.2 mtr
Until 1974
Propulsion Werkspoor-Lugt V.E.S. 604/90
Power 1,600 H.P.
Since 1974
Propulsion Deutz
Power 2,000 H.P.
Auxiliary engines 2 Werkspoor TMA-234 - 180 CV
Emergency engine 50 kW
Sold 1956 to
Owner Compañía Trasmediterránea
Name Ciudad de Teruel
Scrapped Villanueva y La Geltrú / 1980

Ciudad de Teruel por T. Diedrich
As Ciudad de Teruel



Pedro de Alvarado
Pedro de Alvarado by T. Diedrich

Shipyard / Year Bazán - Cartagena / 1959
Dead weight 7,571 MT
Net register 2,444 NRT
Gross register 5,120 GRT
Length 131.4 mtr
Breadth 17.4 mtr
Depth 8.4 mtr
Propulsion Steam turbines Rateau
Power 7,000 H.P.
Gasoil consumpt. 42.7 MT/day
Gasoil capacity 1,090 MT
Speed 17.7 H.P.
Sold 1972 to
Owner Compañía Naviera Marasia
Name Pacifico
Scrapped 1976



Alonso de Ojeda
Alonso de Ojeda by T. Diedrich

Shipyard / Year Astilleros de Cádiz / 1958
Dead weight 7,539 MT
Gross register 4,573 GRT
Net register 2,400 NRT
Length 131.5 mtr
Breadth 17.3 mtr
Propulsion 4 diesel engines MAN G8 VU
Power 8,000 H.P.
Gasoil consumpt. 27.8 MT/day
Gasoil capacity 711 MT
Speed 18.6 knots
Sold 1973 to
Owner Naviera Costa Vasca
Name Alonso de Ojeda
Scrapped Burriana (Castellón) - 1980



With the contribution of Javier Careaga Basarrate, who supplied the engines data.
