Naviera Lagos

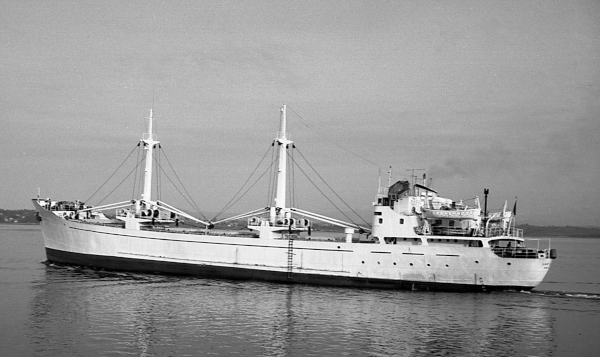

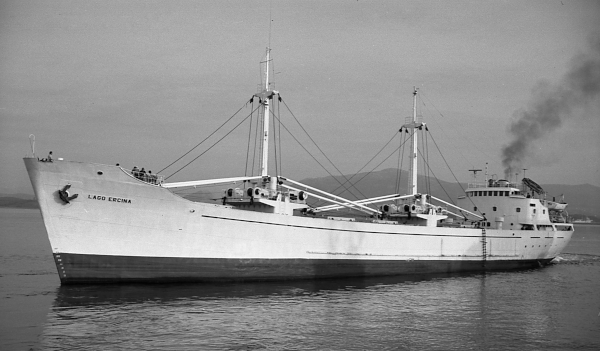

Lago Ercina

Shipyard / Year	Astilleros Corcho e Hijos - Santander / 1959
Owner	Naviera del Zodíaco, S.A.
Name	Libra
Dead weight	1,831	MT
Gross register	995	GRT
Length	82.0	mtr
Breadth	12.3	mtr
Depth	7.1	mtr
Maximum draft	4.5	mtr
Propulsion	Werkspoor TMABS-398
Power	1,700	H.P.
Speed	12.0	knots
Bought	1967	to
Owner	Naviera del Zodíaco, S.A.
Reconverted	1967 to reefer
Fire	13/07/1973 -- 16º20'S - 08º00'E
Scarpped	Luanda (Angola) - 1976

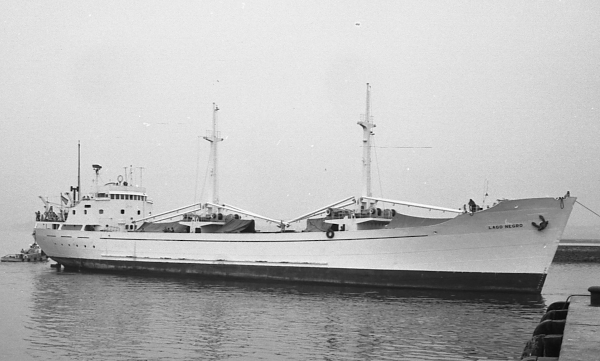

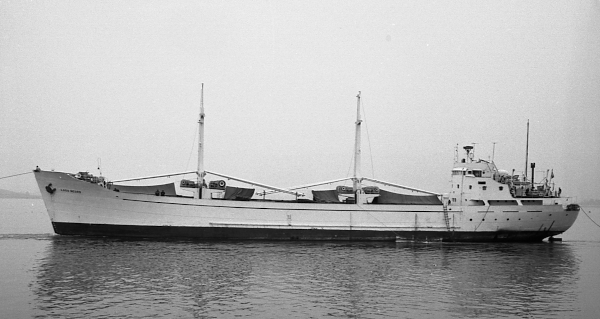

Lago Negro

Shipyard / Year	Astilleros Corcho e Hijos / 1959
Owner	Naviera del Zodíaco, S.A.
Name	Escorpion
Dead weight	1,831	MT
Gross register	995	GRT
Length	82.0	mtr
Breadth	12.3	mtr
Depth	7.1	mtr
Maximum draft	4.5	mtr
Propulsion	Werkspoor TMABS-398
Power	1,700	H.P.
Speed	12.0	knots
Bought	1967	to
Owner	Naviera del Zodíaco, S.A.
Name	Escorpion
Converted	1967 to reefer
Sold	1974	to
Owner	Naviera Continental, S.A.
Name	Anubis
Name / Year	Reefer Express / 1980
Name / Year	Alaska II / 1980
Sunk	08/04/1986 -- 26º15'N-34º28'E

>

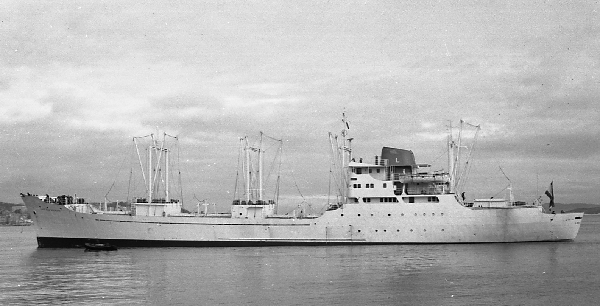

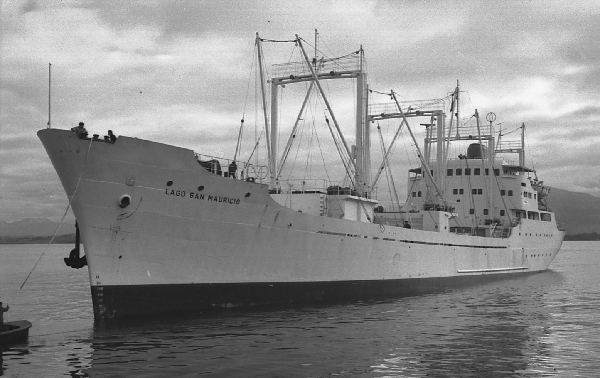

Lago San Mauricio

Shipyard / Year	ASTANO - Ferrol / 1967
Dead weight	2,601	MT
Gross register	1,639	GRT
Length	96.7	mtr
Breadth	14.0	mtr
Depth	8.2	mtr
Maximum draft	5.7	mtr
Propulsion	Naval - B&W VT2BF-110
Power	4,200	H.P.
Alternatos	2 x 320 kW + 1 x 200 kW - 380 VAC 50Hz
Sold	1975	to
Owner	Naviera del Sur
Name	Isora
Scrapped	La Coruña - 1985

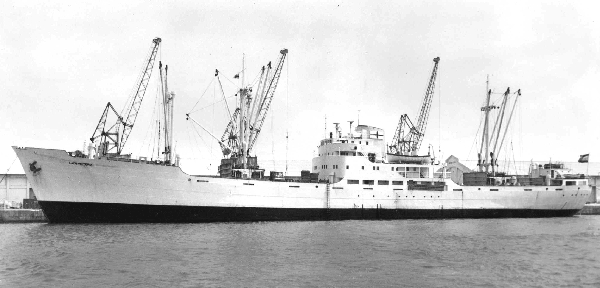

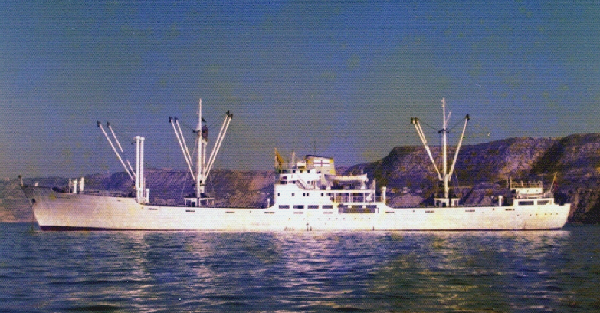

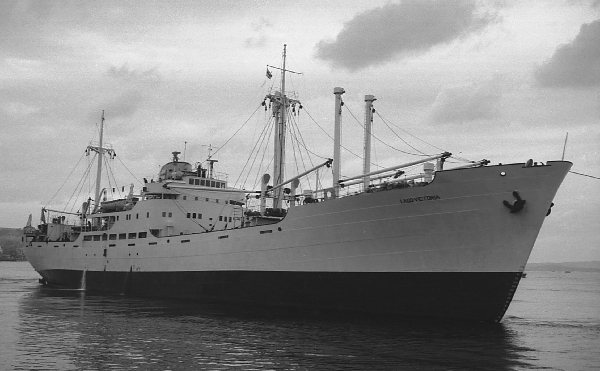

Lago Victoria

Shipyard / Year	Bazán - Cartagena / 1954
Owner	Empresa Nacional Elcano
Name	La Mancha
Owner / Year	Castañer y Ortiz / 1963
Name	La Mancha
Dead weight	4,050	MT
Gross register	2,888	GRT
Length	108.3	mtr
Breadth	14.8	mtr
Depth	9.1	mtr
Maximum draft	6.1	mtr
Propulsion	Werkspoor KMWS 606/110
Power	2,325	H.P.
Dynamos	3 x 75 kW - 220 VDC
Speed	13	knots
Bought	1971	to
Owner	Castañer y Ortiz
Name	La Mancha
Sold	1976	to
Owner	Celomar Maritime - Chipre
Name	Great Alexander
Name / Year	Hermes / 1979
Scrapped	Perama (Greece) / 1981

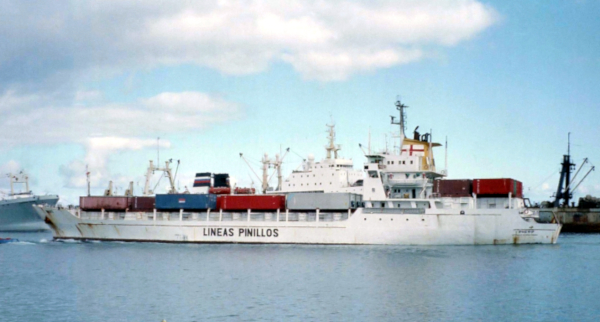

Lago Victoria As Duero. Sunk in a voyage with scrap iron from Constanza (Romania) to Istanbul (Turkey) on 01/09/2010. Previously, in 2008, she was converted in general cargo vessel.

Shipyard / Year	Astilleros de Huelva / 1982
Dead weight	4,035	MT
TEU	190
Gross register	1,990	GRT
Length	111.8	mtr
Breadth	15.8	mtr
Depth	8.7	mtr
Maximum draft	6.0	mtr
Propulsion	Bazán - MAN 12V-40/54A
Power	7,500	H.P.
Alternators	4 x 375 kW - 380 VAC 50Hz
Speed	19.3	knots
Sold	1986	to
Owner	Naviera Pinillos
Names	Duero - Charo B
Sold	2004	to
Owner	Spring Breeze Shipping - Malta
Name	Med Breeze
Name / Year	Medy / 2008
Sunk	01/09/2010 -- 44º00'N - 28º45'E

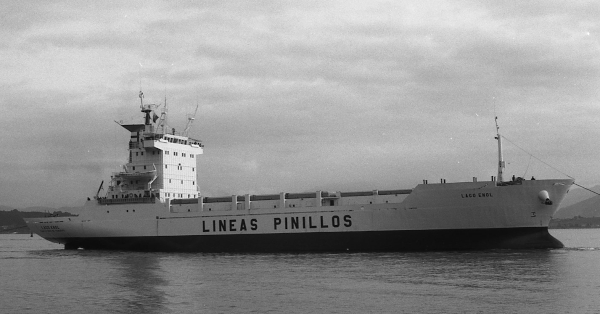

Lago Enol

Shipyard / Year	Astilleros del Atlántico / 1983
Dead weight	3,736	MT
Gross register	4,093	GRT
TEU	318
Length	96.1	mtr
Breadth	17.4	mtr
Depth	9.5	mtr
Maximum draft	6.2	mtr
Propulsion	AESA - B&W 6L45GFCA
Power	5,910	H.P.
Alternators	4 x 400 kW - 380 VCA 50Hz
Speed	16.0	knots
Sold	1986	to
Owner	Naviera Pinillos

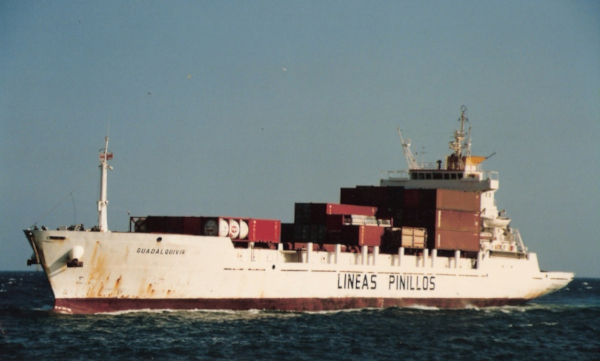

Name	Guadalquivir
1989 - Lengthened by ASTICAN - Las Palmas
Dead weight	4,844	MT
Gross register	5.021	TRB
Length	111.6	mtr
Name 1998	Candelaria B
Name / Year	Sicilia Breezer / 2004
Name / Year	Saint Andreas / 2008
Scrapped	Aliaga - Turkey / 2012

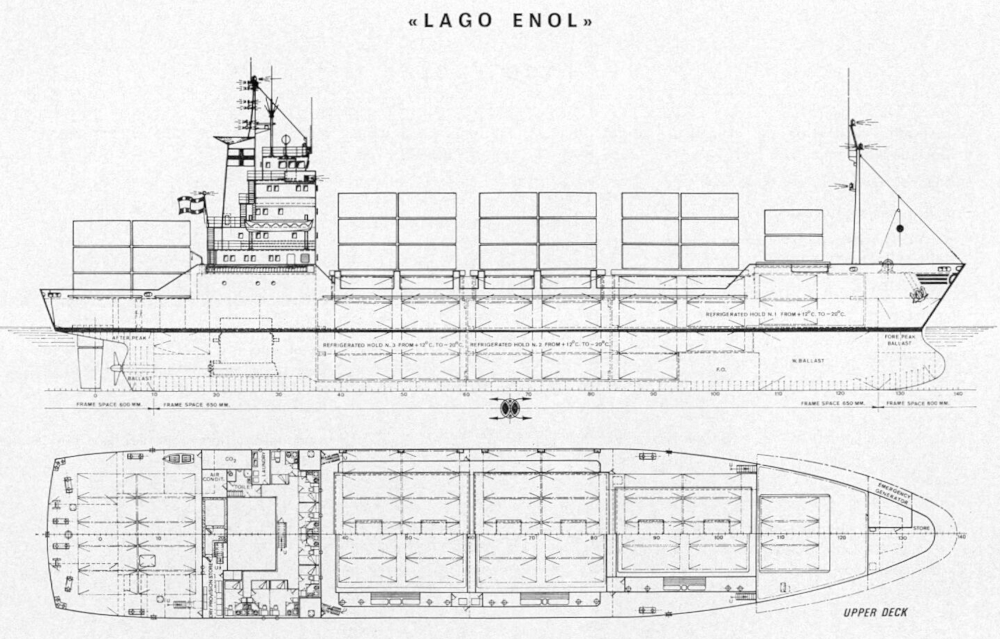

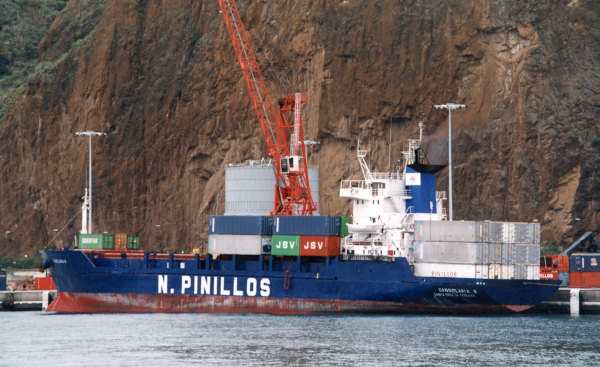

As Candelaria B Original drawings


With the contribution of Javier Careaga Basarrate, who compiled part of data
